Adentatec

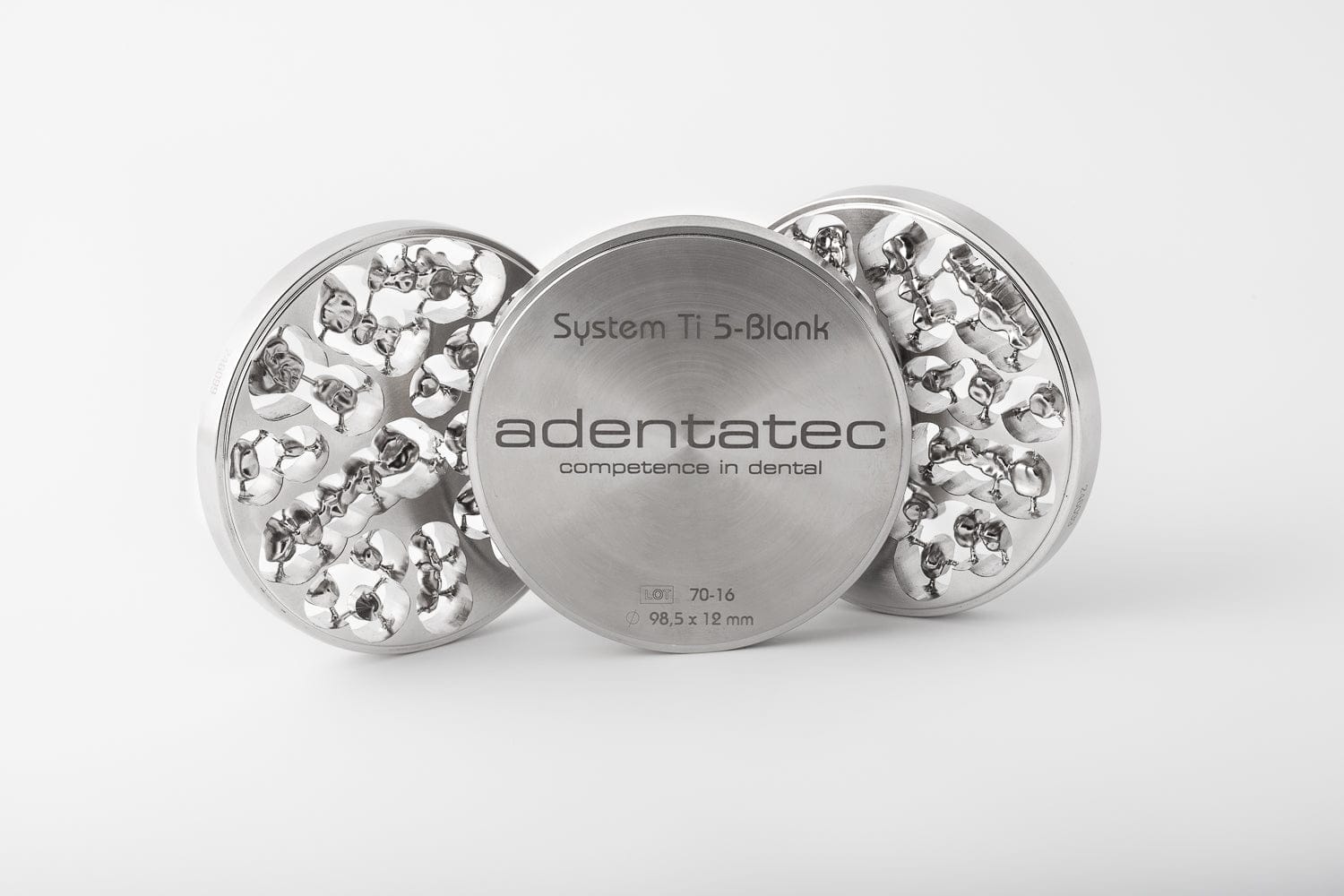

SYSTEM TI 5-BLANK
SYSTEM TI 5-BLANK is a non-precious dental milling alloy on Ti6Al4V (medical quality)
SYSTEM TI5-BLANK is intended for the use of crowns, bridges and structures.
SYSTEM TI5-BLANK has a proofed biocompatibility according DIN EN ISO 10993 with a good corrosion resistance.
Typical material properties
| Yield strength 0,2 % (MPa) | 816 |
| Elongation (%) | 15,0 |
| Tensile strength (MPa) | 885 |
| E-module (GPa) | 115 |
| Density (g/cm³) | 4,4 |
| CTE (25 – 500°C) (10⁻⁶ K⁻¹) | ~10,3 |
| Hardness HV 10/30 | 318 |
| Delivery form (mm) (X) = 8/10/12/14/15/16/18/20/25/27 |
Ø 98,5 x (X) Ø 99,5 x (X) |
| Acc. ASTM 136 and DIN EN ISO 5832-3 | Grade 5-ELI / Grade 23 |
Lot numbers may show minimum deviation from typical values.
More information are available on our instruction for use.
Chemical composition %
| Ti | Al | V | O | Fe | C | N | H |
| Bal. | 5,5 – 6,5 | 3,5 – 4,5 | 0,13 | 0,25 | 0,08 | 0,05 | 0,012 |
