Nabertherm GmbH

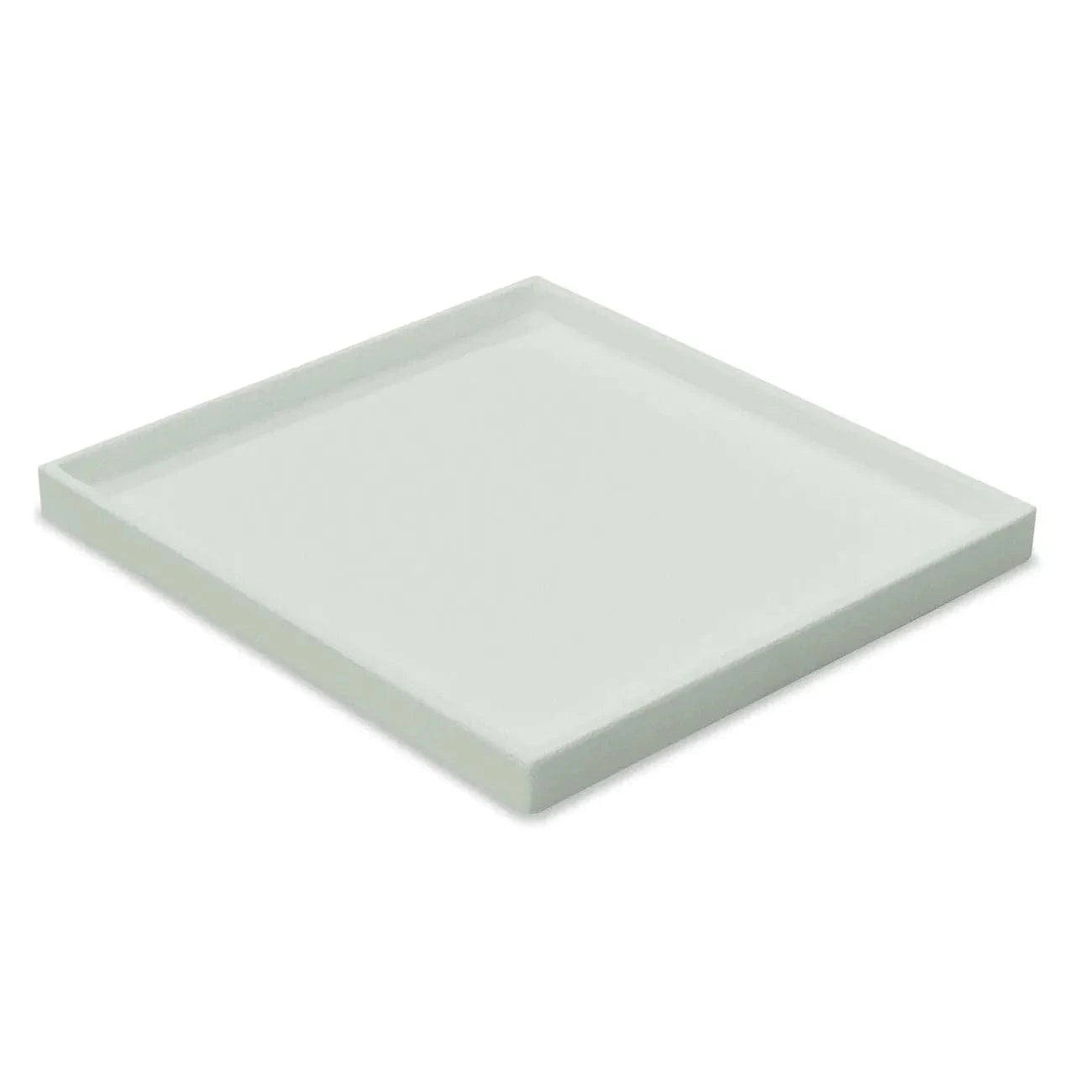

Nabertherm Ceramic Collecting Pan

Select between different bottom plates and collecting pans for protection of the furnace and easy loading for models L, LT, LE, LV and LVT. Steel collecting pans may deform/distort under heat. For batches that are sensitive to tipping, ceramic shelves to protect the furnace bottom are recommended.

Technical specifications
For models Ceramic ribbed plate Ceramic collecting pan Stainless steel collecting pan (Material 1.4828)
  Articel No. Dimensions in mm Articel No. Dimensions in mm Articel No. Dimensions in mm
L 1, LE 1 691601835 110 x 90 x 12.7 - - 691404623 85 x 100 x 20
LE 2 691601097 170 x 110 x 12.7 691601099 100 x 160 x 10 691402096 100 x 180 x 20
L 3, LT 3, LV 3, LVT 3 691600507 150 x 140 x 12.7 691600510 150 x 140 x 20 691400145 150 x 140 x 20
LE 6, L 5, LT 5, LV 5, LVT 5 691600508 190 x 170 x 12.7 691600511 190 x 170 x 20 6000095954 160 x 200 x 20
L 9, LT 9, LV 9, LVT 9, N 7 691600509 240 x 220 x 12.7 691600512 240 x 220 x 20 691400147 240 x 220 x 20
LE 14 691601098 210 x 290 x 12.7 - - 691402097 210 x 290 x 20
L 15, LT 15, LV 15, LVT 15, N 11 691600506 340 x 220 x 12.7 - - 691400149 220 x 340 x 20
L 24, LT 24 691600874 340 x 270 x 12.7 - - 691400626 270 x 340 x 20
L 40, LT 40 691600875 490 x 310 x 12.7 - - 691400627 310 x 490 x 20
  • Furnace Accessories
£133.00
£133.00
